GMP Pharmaceutical Powder Mixer , 3d Dry Powder Blending Equipment

GMP Pharmaceutical Powder Mixer , 3d Dry Powder Blending Equipment

Product Details:

Place of Origin: China
Certification: SGS ISO CE
Model Number: SYH

Payment & Shipping Terms:

Minimum Order Quantity: 1units
Price: USD1490-9890 per unit
Packaging Details: plywood or container
Delivery Time: 25 working days
Payment Terms: Western Union, MoneyGram
Supply Ability: 1000units per year
Get Best Price Contact Now

Detail Information

Material: Stainless Steel 304 Or 316L Structure: 3D Dimension Rotary
Rotary: Yes Application: Food/pharmaceutical Insudstries
Applicable To: Powder Standard: GMP
Mixing Effect: Even
High Light:

GMP pharmaceutical powder mixer


3d dry powder blending equipment

Product Description

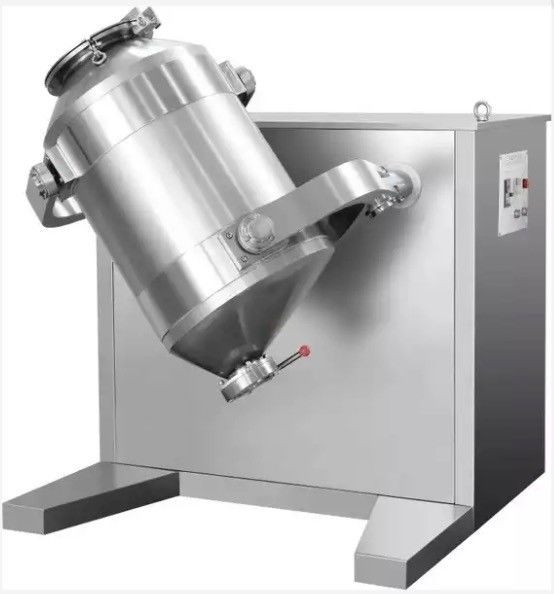

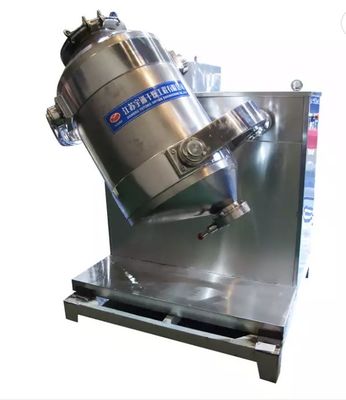

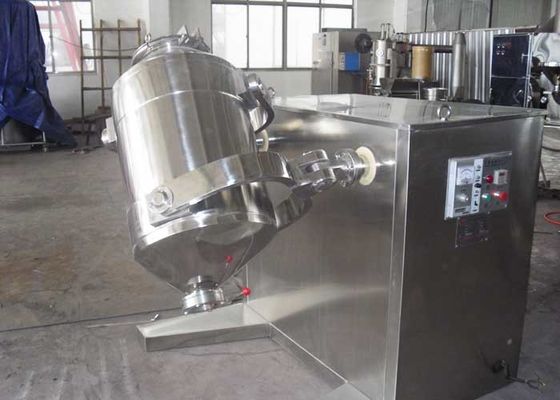

Pharmaceutical Powder Mixer , Three Dimensional Dry Powder Blending Equipment


How the 3D powder mixer works
The three-dimensional mixer is a commonly used mixer. We all know that it consists of a base, a transmission system, an electrical control system, a multi-directional motion mechanism, a mixing barrel, etc. The mixing barrel that is in direct contact with the material is made of stainless steel. The inner and outer walls of the barrel are polished. Don't miss out on these professional drying equipment.

How the three-dimensional mixer works: When mixing, all materials involved in the mixing are required to be evenly distributed. The degree of mixing is divided into three states: ideal mixing, random mixing, and completely unmixed. The degree of mixing of the various materials in the mixing machine depends on factors such as the proportion of the material to be mixed, the physical state and characteristics, and the type of mixing machine used and the duration of the mixing operation. The mixing of the liquid mainly relies on a mechanical agitator, a gas stream and a jet of the liquid to be mixed, etc., so that the material to be mixed is agitated to achieve uniform mixing. The agitation causes a portion of the liquid to flow, which in turn pushes the liquid around it, with the result that a circulating liquid flow is formed within the solution, and the resulting diffusion between the liquids is referred to as bulk convection diffusion.


The characteristics of the three-dimensional powder mixer:

main body convection diffusion and eddy current diffusion caused by stirring, increasing the surface area of ​​molecular diffusion between different liquids reduces the diffusion distance, thereby shortening the time of molecular diffusion. If the viscosity of the liquid to be mixed is not high, it can be brought to a random mixing state within a short stirring time; if the viscosity is high, a longer mixing time is required. For liquids of different density, composition, and incompatibility, the shearing action caused by the agitation and the strong turbulence shred the dense liquid into small droplets and uniformly disperse it into the main liquid. The flow rate of the liquid produced by the agitation must be greater than the settling velocity of the droplets. Working principle Three-dimensional mixer is in operation, because the mixing barrel has multi-directional operation, so that various materials can accelerate the flow and diffusion during the mixing process, and avoid the segregation of the specific gravity of the material caused by the centrifugal force of the general mixer. And the phenomenon of accumulation, mixing without dead angle, can effectively ensure the best quality of the mixture.


Technical Parameter

Spec SYH-5 SYH-15 SYH-50 SYH-100 SYH-200 SYH-400 SYH-600 SYH-800 SYH-1000 SYH-1200 SYH-1500 SYH-2000
volume of barrel(L) 5 15 50 100 200 400 600 800 1000 1200 1500 2000
charge volume(L) 4.5 13.5 45 90 180 360 540 720 900 1080 1350 1800
charge weight(kg) 1.5-2.7 4-8.1 15-27 30-54 50-108 100-216 150-324 200-432 250-540 300-648 400-810 500-1080
rotation speed of main shaft(r/min) 0-20 0-20 0-20 0-20 0-15 0-15 0-13 0-10 0-10 0-9 0-9 0-8
motor power(kw) 0.25 0.37 1.1 1.5 2.5 4 5.5 7.5 11 11 15 18.5
size L×W×H(mm) 600
800 ×1200
1150 ×1400
1250 ×1800
1450 ×2000
1650 ×2200
1850 ×2500
2100 ×2650
2150 ×2800
2000 ×3000
2300 ×3200
2500 ×3500
weight(kg) 100 200 300 800 1200 1200 1500 1700 1800 2000 2400 3000

The bulk density of material is made based on 0.6g/cm3, Please point out if it's over .
