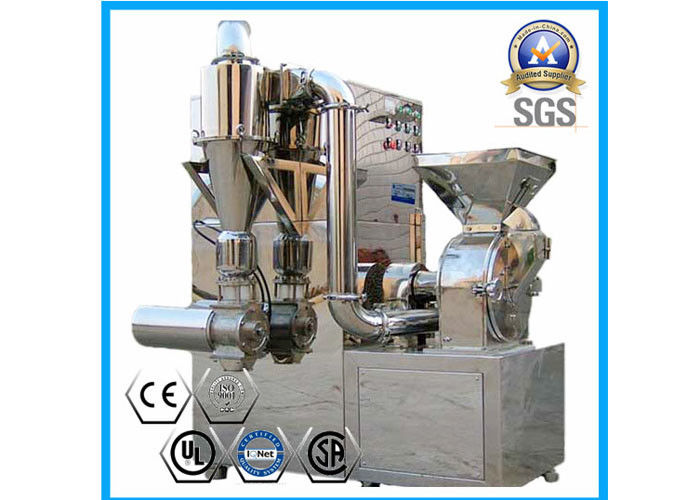

GMP Stainless Steel Grinding Machine
Product Details:
| Place of Origin: | China |
| Certification: | ISO CE SGS |
| Model Number: | WF-20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1unit |
|---|---|
| Price: | USD 2999-9897 per unit |
| Packaging Details: | export plywood or shipping container |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100units per month |
|
Detail Information |
|||
| Name: | Herb Grinder | Other Name: | Herb Grinding Machine |
|---|---|---|---|
| Structure: | Hammer Grinder Blades | Production: | Continuous |
| Material: | Stainless Steel 304 | Processing Capacity: | 20-100kg Per Hour |
| Discharge Size: | 20-120 Mesh | Application: | Fiber Herb, Herbal Medicine |
| High Light: | GMP Stainless Steel Grinding Machine,5mm Stainless Steel Grinding Machine |
||
Product Description
High Speed Stainless Steel Grinder , Durable Herb Pulverizer Machine
First, the main purpose
The machine has no screen for dry materials with Mohs hardness below four grades.
With ultra-fine pulverization of certain oleaginous and heat sensitive materials and fiber materials.
Second, the characteristics
The whole machine is composed of a feeding hopper, a crushing chamber, a grading chamber, a cyclone separator, a bag filter, and an induced draft fan. The design is novel and compact, and the whole body is carefully made of stainless steel material and meets the "GMP" standard. The particle size of the finished product is adjusted by manual air selection, which saves the labor consumption and cost of controlling the classifying impeller by the speed regulating motor, and solves many disadvantages of the screen size control of the ordinary pulverizer.
Specifications
This grinder is special for crushing the Chinese herbal medicines with fibers contained or materials with a certain oil.
Summary:
It is suitable for the industries of pharmacy, food, chemical, etc. With no limit of viscosity, hardness, and fiber content of the material, it is functioned with air cooling, screen-free, etc. Special for crushing the Chinese herbal medicines with fibers contained or materials with a certain oiliness.
Working principle:
It consists of feeder hopper, classification round, smashing blade, gear ring, smashing motor, discharge hole, fan, , cleaning box, etc. Materials are fed in to crush room from feeder hopper and be crushed by high-speed blade. To satify the required fineness of materials by adjusting the distance between classification round and classification plate. Then the high-speed rotating blades will send the materials which has achieved the requirements to the cloth-bag of aggregate box; also, the others will be kept into crush room to be crushed. The powder dust produced by cloth-bag of aggregate box will be collected by cleaning box. This equipment is designed with the GMP standard and features simple structure, easy of cleaning and operation, low nosie, large production. All the device is made of good quality of stainless steel.
Technical parameters
|
Type |
200 |
300 |
400 |
|
Production capacity (kg/h) |
10-110 |
30-200 |
50-300 |
|
feeding granularity (mm) |
5 |
12 |
15 |
|
Smash fineness(mesh) |
60-320 |
60-320 |
60-320 |
|
Smash motor(kw) |
5.5 |
7.5 |
1.5 |
|
Dust-absorption motor(kw) |
1.1 |
1.5 |
2.2 |
|
Outline dimension L×W×H (mm) |
1000×800×1600 |
1200×850×1780 |
1500×900×1950 |
|
Weight(kg) |
320 |
650 |
800 |
