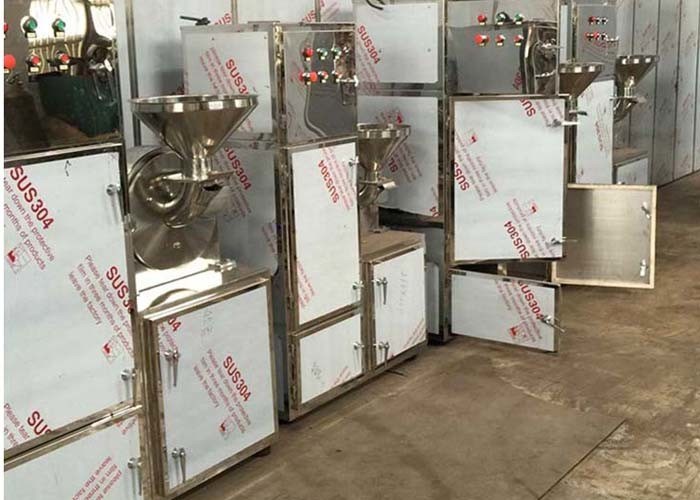

100 Mesh Stainless Steel Grinder
Product Details:
Place of Origin: | China |
Certification: | ISO CE SGS |
Model Number: | 30B |
Payment & Shipping Terms:
Minimum Order Quantity: | 1unit |
---|---|
Price: | USD 1999-9897 per unit |
Packaging Details: | export plywood or shipping container |
Delivery Time: | 15 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 100units per month |
Detail Information |
|||
Name: | Pin Mill | Other Name: | Universal Grinder |
---|---|---|---|
Structure: | Teeth Pin | Production: | Continuous |
Material: | Stainless Steel 304 | Discharge Powder Size: | 20-100mesh |
Filter: | Inside Bag Filter | Pulverizer Application: | Sugar, Salt, Pepper, Rice, Grain, Cereal, Bean, Chemical, Medicine |
Highlight: | 100mesh stainless steel grinder,20mesh stainless steel grinder |
Product Description
Multifunction Pin Mill Pulverizer , Universal Pin Mill Grinding Machine
The universal pulverizer uses the high-speed relative motion seen by the movable sprocket and the fixed sprocket to make the pulverized material crushed by the combined action of tooth impact, friction and material impact. The machine has simple structure, firmness, stable operation and good pulverization effect. The pulverized material can be directly discharged from the grinding chamber of the main machine, and the particle size can be obtained by replacing the mesh screen with different apertures, and the machine is all stainless steel. The inner wall of the casing is machined to achieve a smooth surface, which changes the phenomenon of rough and powder accumulation on the inner wall of the previous model, making the production of medicines, food, chemicals and other products more in line with national standards and meeting the requirements of GMP.
Universal crusher is suitable for pharmaceutical, chemical, metallurgy, food, construction and other industries. Processing hard and hard-to-crush materials, including pulverizing plastics, copper wire, Chinese herbal medicines, rubber, etc., and also as an auxiliary equipment for the processing of micro-grinders and superfine pulverizers. The powder collection room adopts a fully enclosed sound-absorbing structure, which can effectively reduce the working noise. The machine is equipped with a cooling device to reduce the machine temperature and make the work more stable. The motor speed of the machine is 5000 rpm. This machine is made of Icr18Ni9Ti stainless steel material and has strong wear and corrosion resistance. It is suitable for processing advanced and corrosive materials. The machine adopts the impact crushing method. After the material enters the crushing chamber, it is impacted by six movable hammers rotating at high speed. The ring gear and the material collide with each other to crush, and the crushed material enters through the sieve hole with the help of airflow. Powder bag, leaving no residue. It has the advantages of high efficiency, low noise, reliable performance and product quality, safe operation, low drug hygiene and low loss.
The material of the universal pulverizer is fed into the pulverization chamber by the feeding hopper. The impact knives and the fixed knives are simultaneously sheared and pulverized by the impact of the blade and the knife seat. The material automatically flows out from the outlet due to the centrifugal force of the rotation.
Note: Due to the large difference in materials, the difference in yield is also large.
Model | 20B | 30B | 40B | 60B |
Capacity (kg/h) | 60-150 | 100-300 | 160-800 | 500-1500 |
Rotation speed (r/min) | 4500 | 3800 | 3400 | 2800 |
feed size(mm) | 6 | 10 | 12 | 15 |
outlet size (mesh) | 60-120 | 60-120 | 60-120 | 60-120 |
Power (kw) | 4 | 5.5 | 11 | 15 |
Weight (kg) | 250 | 320 | 550 | 680 |
Overall size (L×W×H)(mm) | 550×600×1250 | 600×700×1450 | 800×900×1550 | 1000×900×1680 |
