Trough Industrial Ribbon Mixer , 100L Dry Powder Blending Equipment
Product Details:
| Place of Origin: | China |
| Certification: | SGS ISO CE |
| Model Number: | CH |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1units |
|---|---|
| Price: | USD1490-9890 per unit |
| Packaging Details: | plywood or container |
| Delivery Time: | 25 working days |
| Payment Terms: | Western Union, MoneyGram |
| Supply Ability: | 1000units per year |
|
Detail Information |
|||
| Material: | Stainless Steel 304 Or 316L | Structure: | Trough/ribbon |
|---|---|---|---|
| Rotary: | Yes | Application: | Food/pharmaceutical Insudstries |
| Applicable To: | Powder | Standard: | GMP |
| High Light: | Dry Powder industrial ribbon mixer,100L dry powder blending equipment |
||
Product Description

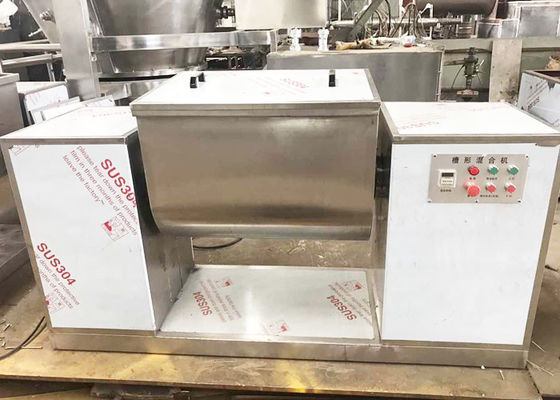

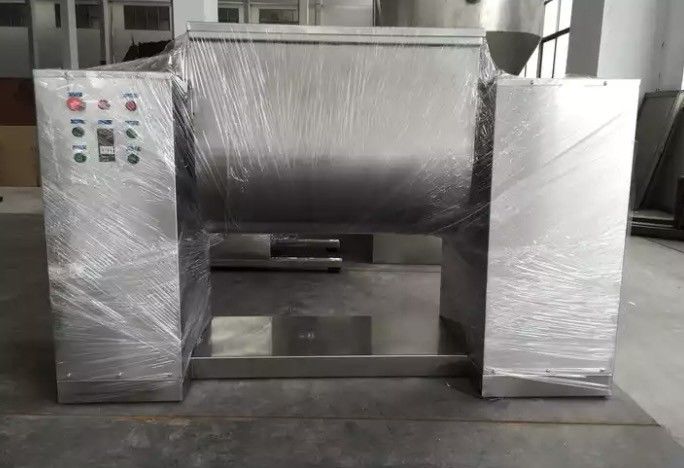

Trough Ribbon Blender Mixer Machine , High Efficient Powder Mixing Equipment
The main purpose of trough ribbon mixer machine
This machine is a full stainless steel horizontal trough mixer for powder or paste materials in the pharmaceutical, chemical and food industries.
working principle
The machine is driven by mechanical transmission to make the S-type stirring slurry rotate, push the material to reciprocate, and mix evenly. The electric control is used during operation. The mixing time can be set and the machine will automatically stop when it is finished, thus improving the mixing quality of each batch of materials.
Trough ribbon mixer machine Characteristics
The places where contact the raw materials are made of stainless steel.The gap between blades is small and there is no dead corner. At the ends of stirring shaft,there are seal devices.It can prevent from the raw material leakage.
Material to be dried
It is widely used for pharmaceutical,chemical,foodstuf f and so on industries
Technical Parameter
| capacity(L) | 100 | 150 | 200 | 400 |
| power of motor(kw) | 2.2 | 3 | 3 | 5.5 |
| speed of stirring(rpm) | 24 | 24 | 24 | 24 |
| inclined(×) | 105 | 105 | 105 | 105 |
| weight(kg) | 350 | 500 | 650 | 1200 |
| overall dimensions(mm) | 1400×500×1000 | 1600×600×1100 | 1800×700×1200 | 2000×820×1460 |
The bulk density of material is made based on 0.6g/cm3, Please point out if it's over .
