12rpm SS316L V Blender Dry Powder Mixer Pharmaceutical Insudstries Use
Product Details:
Place of Origin: | China |
Certification: | SGS ISO CE |
Model Number: | VHJ |
Payment & Shipping Terms:
Minimum Order Quantity: | 1units |
---|---|
Price: | USD1490-9890 per unit |
Packaging Details: | plywood or container |
Delivery Time: | 25 working days |
Payment Terms: | Western Union, MoneyGram |
Supply Ability: | 1000units per year |
Detail Information |
|||
Material: | Stainless Steel 304 Or 316L | Structure: | V |
---|---|---|---|
Rotary: | Yes | Application: | Food/pharmaceutical Insudstries |
Applicable To: | Powder | Standard: | GMP |
Rotary Speed: | 12rpm | Voltage: | 220 380 400 415 |
Name: | Powder Mixer | ||
Highlight: | 12rpm v blender dry powder mixer,SS316L v blender dry powder mixer |
Product Description
High Performance Dry Powder V Mixer Machine , GMP Standard Powder Blending Machine

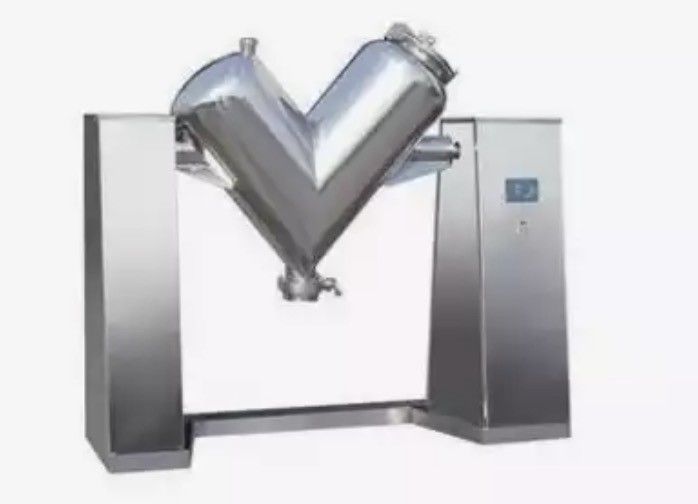

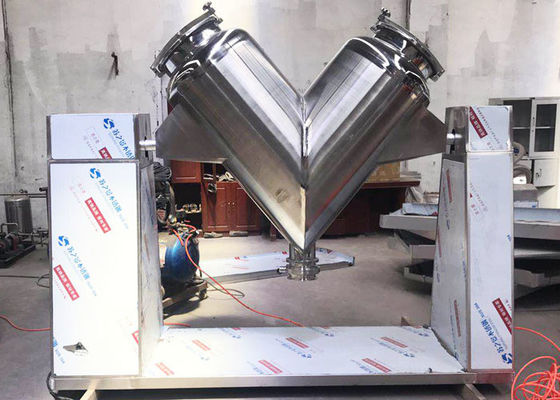

Principle and structure of V type mixer
V-type mixer is suitable for the mixing of dry powder and granule materials for pharmaceutical, chemical and food.
The V-type mixing machine has a unique structure, uniform mixing, high efficiency and no accumulation. The whole machine has a simple structure and easy operation. The outer surface and material contact parts are made of high quality stainless steel, which is beautiful in appearance and convenient for maintenance and cleaning.
One end of the V-type mixer is equipped with a motor and a reducer. The motor power is transmitted to the reducer through the belt, and the reducer is transmitted to the V-bucket through the United States. Continuously operate the V-shaped barrel to drive the material in the barrel to be mixed up, down, left and right in the barrel.
The V-type mixer series is a V-type high-efficiency asymmetric mixer, which is suitable for the mixing of powder or granular materials in the chemical, food, pharmaceutical, feed, ceramic, metallurgical and other industries. The V-type mixer has reasonable structure, simple operation, closed operation, convenient feeding and discharging, and the cylinder (manual or vacuum feeding) is made of stainless steel material, which is easy to clean and is one of the basic equipments of the enterprise.
The V-type mixer series is a V-type high-efficiency asymmetric mixer, which is suitable for the mixing of powder or granular materials in the chemical, food, pharmaceutical, feed, ceramic, metallurgical and other industries. The V-type mixer has reasonable structure, simple operation, closed operation, convenient feeding and discharging, and the cylinder (manual or vacuum feeding) is made of stainless steel material, which is easy to clean and is one of the basic equipments of the enterprise.
One end of the V-type mixer is equipped with a motor and a reducer. The motor power is transmitted to the reducer through the belt, and the reducer is transmitted to the V-bucket through the coupling. The V-shaped barrel is continuously operated to drive the materials in the barrel to be mixed up, down, left and right in the barrel.
Technical Parameter
specitem |
total volume L |
material capcity L |
working capacity kg |
rotating speed rpm |
power kw |
weight kg |
0.05 | 50 | 25 | 15 | 25 | 0.55 | 500 |
0.15 | 150 | 75 | 45 | 20 | 0.75 | 650 |
0.3 | 300 | 150 | 90 | 20 | 1.1 | 820 |
0.5 | 500 | 250 | 150 | 18 | 1.5 | 1250 |
1 | 1000 | 500 | 300 | 15 | 3 | 1800 |
1.5 | 1500 | 750 | 450 | 12 | 4 | 2100 |
2 | 2000 | 1000 | 600 | 12 | 5.5 | 2450 |
3 | 3000 | 1500 | 900 | 9 | 5.5 | 2980 |
4 | 4000 | 2000 | 1200 | 9 | 7.5 | 3300 |
5 | 5000 | 2500 | 1500 | 8 | 7.5 | 3880 |
6 | 6000 | 3000 | 1800 | 8 | 11 | 4550 |
8 | 8000 | 4000 | 2400 | 6 | 15 | 5200 |
10 | 10000 | 5000 | 3000 | 6 | 18.5 | 6000 |
