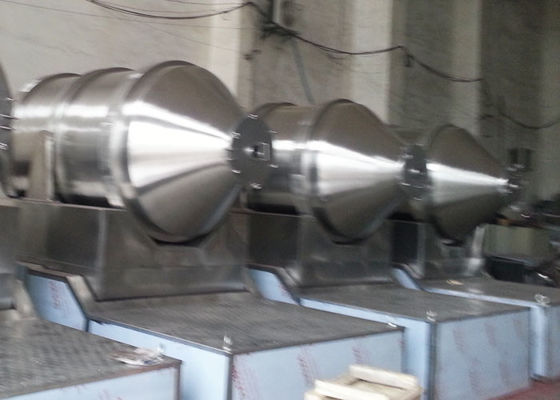

ISO 100L SS304 Fertilizer Powder Mixer Machine 2 Dimension





Two-dimensional mixer, full name two-dimensional motion mixer, as the name suggests, refers to the mixer that can rotate the two directions at the same time. The two directions of motion are the rotation of the drum, and the drum swings with the swing frame. The mixed material rotates, turns, and mixes with the drum in the drum, and at the same time, the mixing motion of the left and right sides occurs with the swing of the drum. Under the joint action of the two movements, the material is fully obtained in a short time. Mixed.
The two-dimensional powder mixer consists of three parts: the drum, the swing frame and the frame. The drum is mounted on the swing frame and is supported by four rollers and axially positioned by the two shifting wheels. Among the four supporting rollers, two of the driving wheels are dragged by the rotating power system to rotate the drum. The swing frame is driven by a set of crank swing mechanism, and the crank swing mechanism is mounted on the frame. The swing frame is supported by the bearing assembly on the frame, so that the rotating drum participates in the swing while rotating, so that the materials in the cylinder are fully mixed. .
