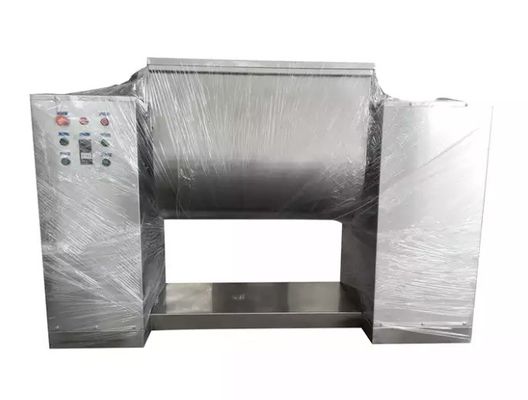

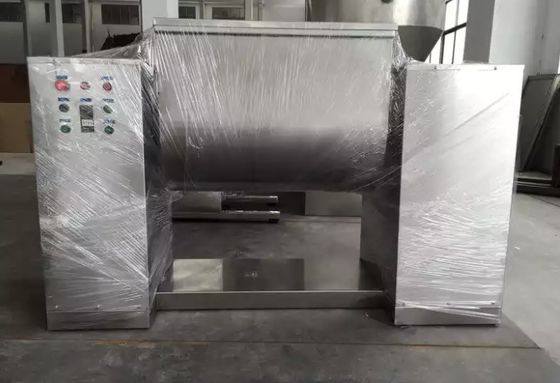

Horizontal Stainless Steel Ribbon Blender , GMP Ribbon Mixing Machine
Product Details:
Place of Origin: | China |
Certification: | SGS ISO CE |
Model Number: | CH |
Payment & Shipping Terms:
Minimum Order Quantity: | 1units |
---|---|
Price: | USD1490-9890 per unit |
Packaging Details: | plywood or container |
Delivery Time: | 25 working days |
Payment Terms: | Western Union, MoneyGram |
Supply Ability: | 1000units per year |
Detail Information |
|||
Material: | Stainless Steel 304 Or 316L | Structure: | Trough/ribbon |
---|---|---|---|
Rotary: | Yes | Application: | Food/pharmaceutical Insudstries |
Applicable To: | Powder | Standard: | GMP |
Highlight: | Horizontal stainless steel ribbon blender,GMP ribbon mixing machine |
Product Description
Industrial Stainless Steel Ribbon Blender , Horizontal Ribbon Powder Mixing Machine
Use and characteristics of the CH series slot powder mixer machine
CH series trough mixer is a stainless steel horizontal trough mixer for mixing powder or paste materials in pharmaceutical, chemical and food. Through the mechanical rotation, the S-type stirring paddle is rotated, the material is pushed back and forth, evenly mixed, and the electric appliance is controlled during operation, the mixing time can be set, and the automatic shutdown is performed at that time, thereby improving the mixing quality of each batch of materials. The machine is made of stainless steel at the touch point of the material. The gap between the paddle and the barrel is small, and there is no dead angle in the mixing. The two ends of the mixing shaft are provided with sealing equipment to avoid material leakage. It is widely used in pharmaceutical, chemical, food and other occupations.
Overview: CH series trough mixer is used to mix powdery or wet materials, so that different proportions of main and auxiliary materials are evenly mixed. It is widely used in dry powder mixing of pharmaceutical, food, chemical, electronics and other occupations. The grooved mixer and the touch point of the material are made of stainless steel. The gap between the blade and the barrel is small, and there is no dead angle in the mixing. The two ends of the mixing shaft are provided with sealing equipment to avoid material diarrhea. The hopper is controlled by buttons and is easy to discharge. It is especially suitable for mixing materials with high uniform demand and large difference in material specific gravity.
Features: CH series trough mixer has the characteristics of compact structure, simple operation, beautiful appearance, small floor space, convenient organization and good mixing effect. The mixer unit is mechanically rolled to rotate the S-type mixing paddle, push the material to reciprocate, and mix evenly. When the operation is controlled by electric appliances, the mixing time can be set, the machine will be shut down actively, and then the mixing quality of each batch of materials will be improved.
Material to be dried
It is widely used for pharmaceutical,chemical,foodstuf f and so on industries
Technical Parameter
capacity(L) | 100 | 150 | 200 | 400 |
power of motor(kw) | 2.2 | 3 | 3 | 5.5 |
speed of stirring(rpm) | 24 | 24 | 24 | 24 |
inclined(×) | 105 | 105 | 105 | 105 |
weight(kg) | 350 | 500 | 650 | 1200 |
overall dimensions(mm) | 1400×500×1000 | 1600×600×1100 | 1800×700×1200 | 2000×820×1460 |
The bulk density of material is made based on 0.6g/cm3, Please point out if it's over .
