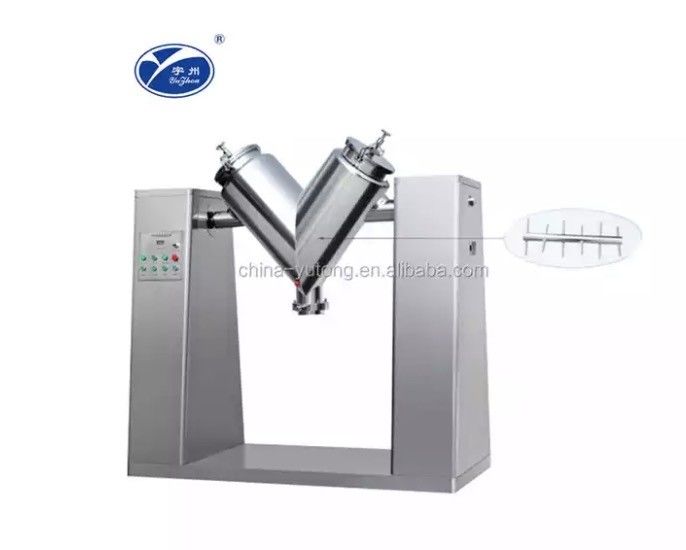

180L Powder Mixer Machine
Product Details:
Place of Origin: | China |
Certification: | CE SGS ISO |
Model Number: | VHJ-0.3 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1set |
---|---|
Price: | USD1980-8904 per unit |
Packaging Details: | plywood packing for export |
Delivery Time: | 20 working days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 1000units per year |
Detail Information |
|||
Name: | V Mixing Machine | Material: | Sus304 |
---|---|---|---|
Volume: | 300L | Speed: | Viable |
Application: | Powder Mixing | Packing: | Export Plywood |
Highlight: | 180L Powder Mixer Machine,sus304 Powder Mixer Machine |
Product Description
Pharmaceutical Powder Mixer Machine High Efficient V Type Powder Mixing Machine 180 L
V-type mixer Application
Applies to material flow is good, mixing small physical differences particulates, as well as the degree of mixing mixing time is short but requires less demanding material mix, since the material flow within the V-shaped mixing vessel steady, will not damage the materials prototype, Therefore, V-type mixer is also suitable for fragile, easy to wear mix granular materials, or finer particles, massive, comprising mixing the materials with certain moisture, widely used in pharmaceutical, chemical, food and other industries.
Description
The machine, food dry powder, mix granular materials.
The unique structure of the mixing drum machine, mixing, high efficiency, no accumulation expected. The whole structure is simple, easy to operate. An outer surface and material contact parts are made of stainless steel, handsome in appearance, maintenance, easy to clean.
Principle and Structure
This machine is equipped with a motor and reducer end, motor power transmitted through a belt gear reducer coupling pass through V-type barrel. So that V-shaped barrel of continuous operation, the material in the barrel to drive the barrel, down, left, right and mixed
V-type mixer Application
Applies to material flow is good, mixing small physical differences particulates, as well as the degree of mixing mixing time is short but requires less demanding material mix, since the material flow within the V-shaped mixing vessel steady, will not damage the materials prototype, Therefore, V-type mixer is also suitable for fragile, easy to wear mix granular materials, or finer particles, massive, comprising mixing the materials with certain moisture, widely used in pharmaceutical, chemical, food and other industries.
Characteristics
The structure of mixing barrel is unique.The mixing effciency is high, no dead corner. The barrel is made of s tainless steel and its internal walls a repolished. The outside qppearance is beautiful. The mixing is uniform, with wide application.
Material to be dried
The mixer is used for mixing the dry material grains in the medical,chemical,food,metallurgical and other industries.
Technical Parameter
specitem |
total volume L |
material capcity L |
working capacity kg |
rotating speed rpm |
power kw |
weight kg |
0.05 | 50 | 25 | 15 | 25 | 0.55 | 500 |
0.15 | 150 | 75 | 45 | 20 | 0.75 | 650 |
0.3 | 300 | 150 | 90 | 20 | 1.1 | 820 |
0.5 | 500 | 250 | 150 | 18 | 1.5 | 1250 |
1 | 1000 | 500 | 300 | 15 | 3 | 1800 |
1.5 | 1500 | 750 | 450 | 12 | 4 | 2100 |
2 | 2000 | 1000 | 600 | 12 | 5.5 | 2450 |
3 | 3000 | 1500 | 900 | 9 | 5.5 | 2980 |
4 | 4000 | 2000 | 1200 | 9 | 7.5 | 3300 |
5 | 5000 | 2500 | 1500 | 8 | 7.5 | 3880 |
6 | 6000 | 3000 | 1800 | 8 | 11 | 4550 |
8 | 8000 | 4000 | 2400 | 6 | 15 | 5200 |
10 | 10000 | 5000 | 3000 | 6 | 18.5 | 6000 |
