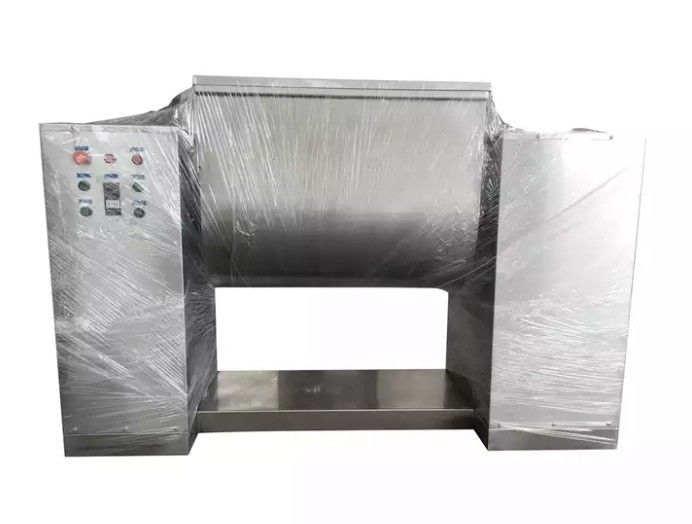

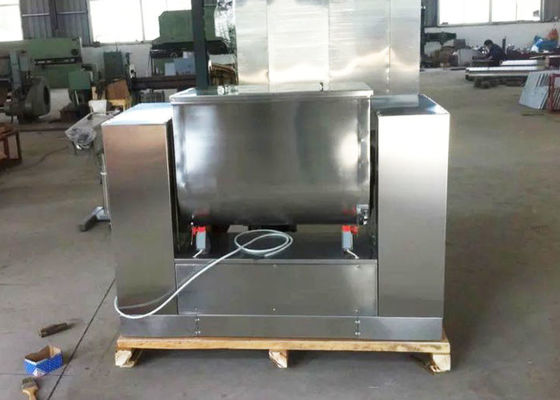

Trough Ribbon Powder Mixer Machine
Product Details:
| Place of Origin: | China |
| Certification: | CE SGS ISO |
| Model Number: | VHJ-0.3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | USD1980-8904 per unit |
| Packaging Details: | plywood packing for export |
| Delivery Time: | 20 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000units per year |
|
Detail Information |
|||
| Name: | Ribbon Mixing Machine | Material: | Sus304 |
|---|---|---|---|
| Volume: | 300L | Speed: | Viable |
| Application: | Powder Mixing | Packing: | Export Plywood |
| High Light: | Trough Ribbon Powder Mixer Machine,300L Powder Mixer Machine |
||
Product Description
Trough Ribbon Blender Mixer For Detergent Powder , Powder Machine Mixer
Product introduction
The trough mixer is used to mix powdery or pasty materials to mix different materials. CH type mixer is widely used for mixing powder or wet raw materials and can make the main and auxiliary raw materials with different proportion uniform.
Characteristics
The places where contact the raw materials are made of stainless steel.The gap between blades is small and there is no dead corner. At the ends of stirring shaft,there are seal devices.It can prevent from the raw material leakage.
Material to be mix
It is widely used for pharmaceutical,chemical,foodstuf f and so on industries
Technical Parameter
| capacity(L) | 100 | 150 | 200 | 400 |
| power of motor(kw) | 2.2 | 3 | 3 | 5.5 |
| speed of stirring(rpm) | 24 | 24 | 24 | 24 |
| inclined(×) | 105 | 105 | 105 | 105 |
| weight(kg) | 350 | 500 | 650 | 1200 |
| overall dimensions(mm) | 1400×500×1000 | 1600×600×1100 | 1800×700×1200 | 2000×820×1460 |
The bulk density of material is made based on 0.6g/cm3, Please point out if it's over .
